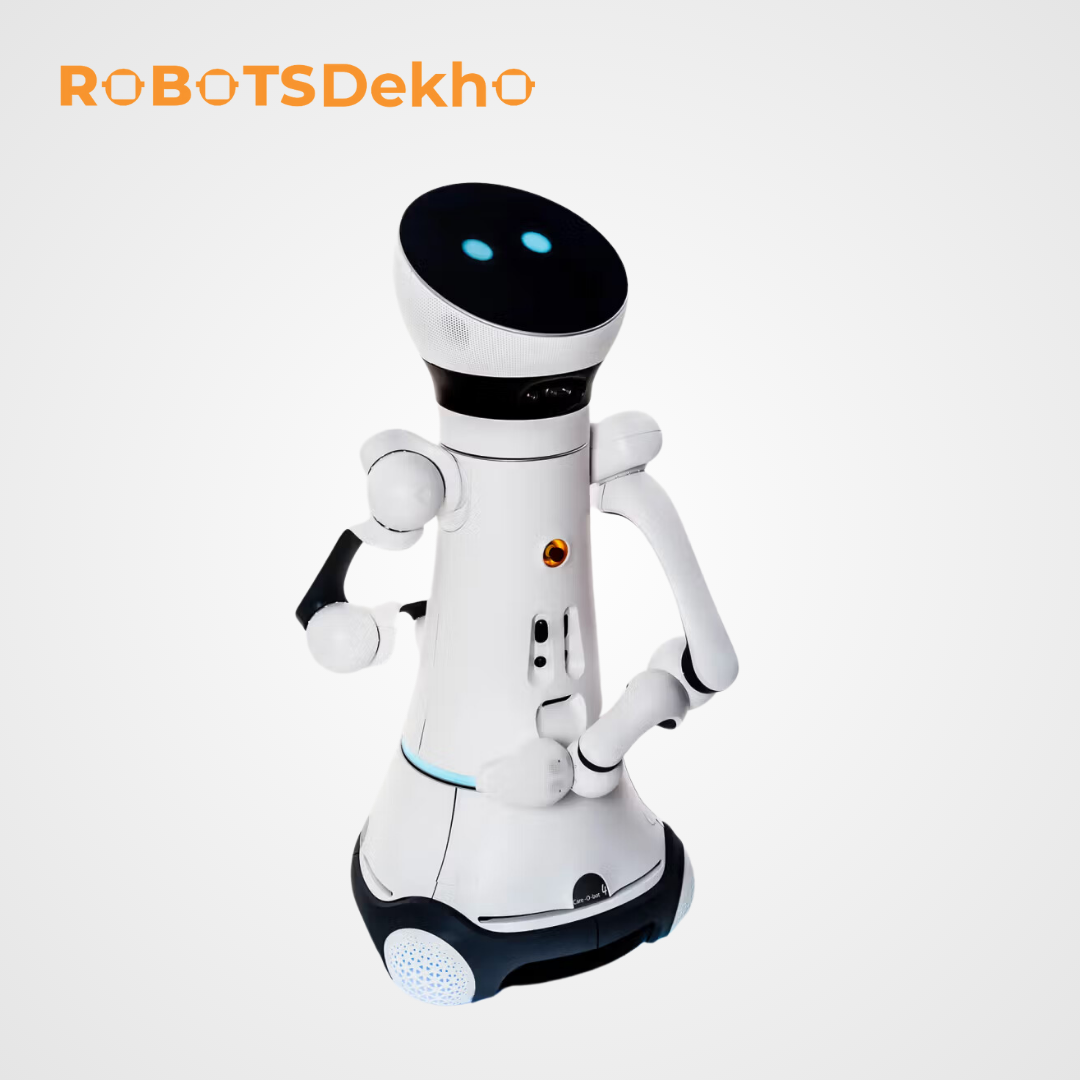

Care-O-bot 4

Care-O-bot 4 is an intelligent, multi-functional service robot designed to assist humans in everyday tasks. With its sleek and modular design, Care-O-bot 4 is capable of navigating complex environments, interacting with people, and performing precise operations such as delivering items or guiding users. Its user-friendly interface and advanced AI capabilities make it an essential tool for industries ranging from healthcare to hospitality. This robot represents the cutting edge of service robotics, providing an efficient, interactive, and reliable solution for modern challenges.

Care-O-bot 4 was developed by Fraunhofer IPA in Stuttgart, Germany. The robot is the fourth generation in the Care-O-bot series, designed to advance human-robot collaboration through intuitive interfaces and adaptable technologies. It is a testament to Fraunhofer IPA’s commitment to innovation in robotics and automation.

1. Manufacturer: Fraunhofer IPA (Institute for Manufacturing Engineering and Automation)
2. Year of Development: 2015
3. Industry: Service Robotics and Human-Robot Interaction
4. Dimensions:
   • Height: Adjustable between 1.35 m and 1.48 m
   • Weight: Approximately 140 kg (308 lbs)
5. Mobility:
   • Omni-directional base with four independent Mecanum wheels
   • Maximum speed: 1.5 m/s (3.4 mph)
6. Manipulator Arm:
   • Six-axis robotic arm with a payload capacity of up to 6 kg (13.2 lbs)
   • Equipped with a three-finger gripper for versatile object handling
7. Sensors and Cameras:
   • 3D cameras for spatial perception and navigation
   • Laser scanners for environment mapping and obstacle avoidance
   • Microphones and speakers for voice interaction
8. Processing Unit:
   • High-performance CPU and GPU for real-time data processing
   • ROS-based (Robot Operating System) architecture for programming and customization
9. Power:
   • Rechargeable lithium-ion battery with up to 8 hours of operational time

Features

• Customizable Design: Modular structure allows integration of additional sensors, tools, or accessories.
• Advanced Navigation: Uses 3D mapping and SLAM technology for autonomous navigation in dynamic environments.
• Human-Robot Interaction: Equipped with voice recognition, touch display, and expressive LED “eyes” to enhance communication.
• Precision Handling: Robotic arm and gripper capable of manipulating delicate and varied objects.
• Versatile Applications: Ideal for service tasks in healthcare, retail, hospitality, and smart home environments.
• Safety Systems: Integrated obstacle detection and fail-safe mechanisms for safe operation around humans.
