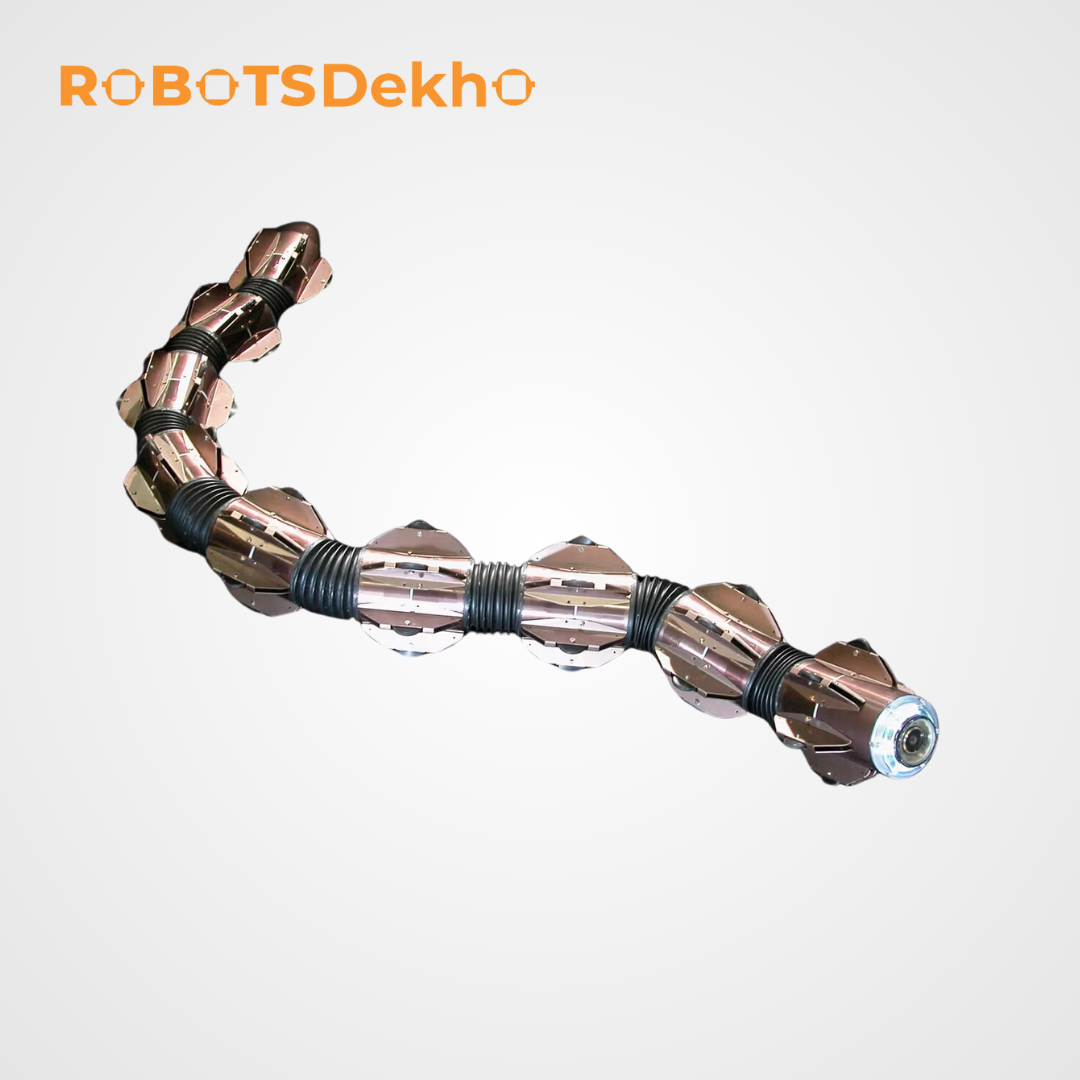

ACM-R5H Snake Robot

The ACM-R5H Snake Robot is a versatile, multi-functional robotic system developed by HiBot Corporation. Inspired by the flexible and efficient locomotion of snakes, this robot is designed for inspection, exploration, and rescue missions in environments that are challenging or inaccessible for conventional robots. Its modular and waterproof design makes it ideal for industrial, underwater, and confined-space operations.

Developer and Brand

• Developer: HiBot Corporation
• Brand: HiBot
• First Release Year: 2012
• Latest Version Release: 2023
• Industry: Robotics, Inspection, Search and Rescue, Underwater Exploration

Specifications

1. Physical Attributes:
   • Length: Configurable, typically 1.5–2 meters (based on module count)
   • Weight: Approximately 8–10 kg (varies with configuration)
   • Material: Durable, corrosion-resistant materials suitable for harsh environments
2. Hardware:
   • Modules: Composed of multiple joint modules, each with 2 DOF (Degrees of Freedom)
   • Cameras: Integrated high-definition cameras for visual inspection
   • Sensors:
     • Inertial Measurement Units (IMU) for orientation and stability
     • Pressure sensors for underwater operation
     • Temperature sensors for monitoring environmental conditions
   • Actuation: Electric motors with precision control for smooth and adaptive movement
   • Battery Life: Up to 2–3 hours per charge depending on activity level
   • Waterproofing: IP68 rating, operational at depths up to 5 meters
3. Connectivity and Software:
   • Tethered or wireless communication for real-time data transmission
   • Custom control software for remote operation and path planning

Key Features

1. Snake-like Locomotion:
   • Capable of slithering, climbing, and swimming, mimicking the movement of a real snake.
   • Allows navigation through narrow or uneven terrain, pipes, and underwater environments.
2. Modular Design:
   • Easily customizable length and functionality by adding or removing modules.
   • Modular approach enhances versatility across applications.
3. Rugged and Waterproof:
   • Designed to operate in harsh conditions, including underwater, in muddy terrains, or confined spaces.
   • Resistant to extreme temperatures and corrosive environments.
4. Inspection and Data Collection:
   • Equipped with high-definition cameras and multiple sensors for thorough visual and environmental analysis.
   • Real-time data streaming for precise monitoring and decision-making.
5. Applications Across Industries:
   • Industrial Inspection: Inspects pipelines, tanks, and equipment in hazardous or hard-to-reach areas.
   • Search and Rescue: Navigates rubble and debris to locate victims in disaster-stricken areas.
   • Underwater Exploration: Conducts inspections in shallow waters and submerged structures.

Why ACM-R5H Stands Out

• Adaptable Locomotion: Its ability to mimic snake movement provides unparalleled maneuverability in confined or irregular spaces.
• Durable Construction: Engineered for extreme environments with robust waterproofing and corrosion resistance.
• Advanced Control: Offers intuitive remote operation with detailed feedback and control over every module.
• Scalable Design: Customizable configurations make it suitable for a broad range of tasks and industries.

Recent Updates (2023):

• Enhanced modular connections for quicker assembly and maintenance.
• Improved battery performance for extended operational hours.
• Upgraded camera and sensor systems for better resolution and data accuracy.

The ACM-R5H Snake Robot exemplifies innovation in robotics, enabling industries to overcome operational challenges with precision and adaptability. Its design and functionality position it as a critical tool for exploration, inspection, and rescue in demanding scenarios.
